old CVA kit

Help Support Muzzle Loading Forum:

tom in nc

36 Cl.
Joined
Aug 20, 2019
Messages
59
Reaction score
15

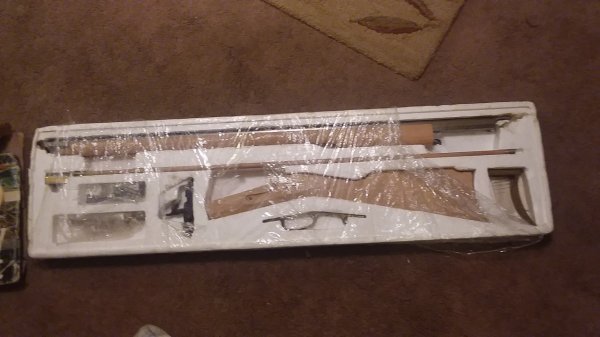

Anybody built a CVA Kentucky Rifle kit? I bought this 45 cal kit last summer at a local flea market, unopened. The seller said he bought it from Gander Mtn, he thought, sometime in the early 70s. I have test fitted the parts together and all the work is pretty much done.Very little cleaning up of the inletting will be needed. Mostly just browning/bluing, staining wood, and assembly being required. I will brown the metal parts. I would like to add a patch box during the build. I bought it cheap.
20200212_222136.jpg 20200212_222229.jpg 20200212_222307.jpg 20200212_222355.jpg 20200212_222255.jpg


bang

45 Cal.
Joined
Jan 2, 2011
Messages
914
Reaction score
340
Ought to be a shooter. I've read the older CVA kits were good and the barrel accurate.


mooman76

69 Cal.
MLF Supporter
Joined
Apr 21, 2012
Messages
3,577
Reaction score
55
Location
Mascoutah, IL
I got one like that a few years back. At a flea market and it had the receipt. 1974 bought at Wards. I paid $54 for it. fun build.


Carbon 6

70 Cal.
Joined
Nov 2, 2018
Messages
4,474
Reaction score
1,898
Do yourself a favor and replace the wooden dowel ramrod with a quality wood rod right off the bat.. they were the weakest link in those kits.


Cowboy

58 Cal.
MLF Supporter
Joined
Feb 9, 2015
Messages
2,553
Reaction score
328
Location
From Cody Wyoming, now lives in Oakwood Illinois
Should be a descent rifle when yer done. Have one about that same time frame. No frill, bells or whistles, but you’ll have no problem hitting what you’re aiming at. Barrel is 7/8 th’s across the flats and solid.

Enjoy your build and keep us posted my friend!

Oh! Gotta see pics when yer done too!!

Respectfully, Cowboy


Loyalist Dave

Cannon
MLF Supporter
Joined
Nov 22, 2011
Messages
8,871
Reaction score
1,531
Location
People's Republic of Maryland
Man the photos bring back memories.

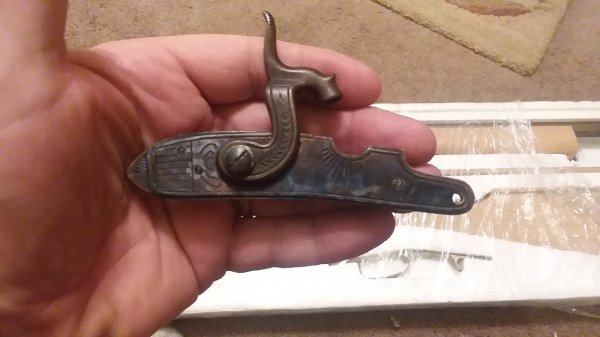

Back when I got mine, I knew nothing about locks. Now... I get a slight cringe when I look at that lock...but they do work.

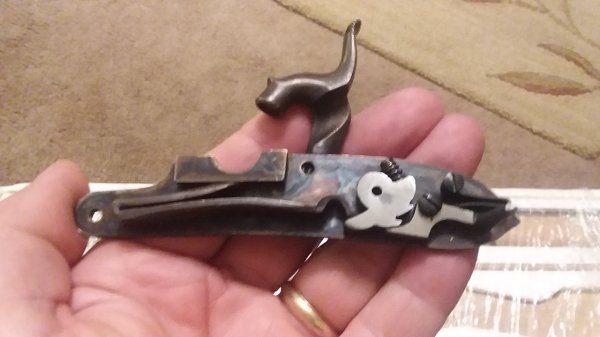

That screw in the tumbler allows you to restrict the depth of the seer at full cock...so only a single trigger and not a set trigger but you can adjust the trigger to pretty "light". Be careful...<hint hint>
They were known to shoot pretty darn well, but only round ball. I tired TC .45 caliber maxi-balls in mine once, and got a nice silhouette impact at 25 yards as the bullet was tumbling end over end and went sideways through the paper.
LD


tom in nc

36 Cl.
Joined
Aug 20, 2019
Messages
59
Reaction score
15
I had never started putting the kit together because I had thought about converting it to flintlock but now that I have another flintlock I'll go ahead and build it as is.
The other thread was interesting.


ppg1949

45 Cal.
MLF Supporter
Joined
Nov 17, 2014
Messages
820
Reaction score
304
Location
W. Central Indiana
I got mine in 1980. A buddy bought the kit in '79 but it was missing many small parts and he didn't complete it. He sold it to me for his cost of $80. I sent off for the missing small parts and finished it. It is accurate. I shot Lee REAL 200 grain bullets out of it when hunting and PRB when punching paper. I still have it although I haven't shot it years.


Zonie

Moderator
Staff member
MLF Supporter
Joined
Oct 4, 2003
Messages
29,893
Reaction score
2,415
Location
Phoenix, AZ
When you stain the wood, use an alcohol base or water base stain like the kind that Birchwood Casey makes.
Do not use a oil based stain like Minwax. The Beechwood the stock is made from will not absorb the stain and you will end up with a very, very light colored stock that IMO looks really bad.

The alcohol or water based stains on the other hand will penetrate the wood and if the color and darkness isn't dark enough you can apply more coats to get to the color/darkness you want.

This CVA double barrel kit stock was stained with 3 coats of Birchwood Casey Walnut stain (available at most gun stores and some Ace Hardware stores.)CVA-SHOTGUN-001web.jpg


longcruise

70 Cal.
Joined
Feb 28, 2005
Messages
5,144
Reaction score
263
Man the photos bring back memories.
Back when I got mine, I knew nothing about locks. Now... I get a slight cringe when I look at that lock...but they do work.
That screw in the tumbler allows you to restrict the depth of the seer at full cock...so only a single trigger and not a set trigger but you can adjust the trigger to pretty "light". Be careful...<hint hint>
They were known to shoot pretty darn well, but only round ball. I tired TC .45 caliber maxi-balls in mine once, and got a nice silhouette impact at 25 yards as the bullet was tumbling end over end and went sideways through the paper.
LD
A little off the topic but they don't tumble end over end. They simply fall into a sideways position. They fly sideways with the heavier end slightly forward. Usually the base is heavier. If you shoot a group of them you will see that all the holes in the paper are the same.


ada16s2000

Pilgrim
Joined
Feb 13, 2020
Messages
1
Reaction score
0
A friend introduced me to muzzleloaders in the 90's by giving me a .50 cal CVA caplock kit. It came out very nice. I've been enjoying shooting it off and on for 25 years! They made some good stuff in those days!

Last edited:

Acorn Mush

32 Cal
Joined
Oct 28, 2018
Messages
5
Reaction score
5
A little off the topic but they don't tumble end over end. They simply fall into a sideways position. They fly sideways with the heavier end slightly forward. Usually the base is heavier. If you shoot a group of them you will see that all the holes in the paper are the same.
Way back when we used to say that unstable bullets "key-holed". Don't know if that term is still in use or not.


ord sgt

40 Cal.
Joined
Jan 9, 2008
Messages
304
Reaction score
5
Location
Socialist state of New Jersey
I had a CVA kit given to me. the .45 caliber rifle was missing a few parts but that was easy to fix. I built it up for my children to shoot. Turns out to be a good shooter. I use a .440 roundball and a .010 patch with Wonderlube. Accurate enough for me.


Eutycus

58 Cal.
Joined
Nov 10, 2018
Messages
2,225
Reaction score
791
Location
South Texas
I had a CVA kit given to me. the .45 caliber rifle was missing a few parts but that was easy to fix. I built it up for my children to shoot. Turns out to be a good shooter. I use a .440 roundball and a .010 patch with Wonderlube. Accurate enough for me.
There are several good adjectives to describe a CVA and I think "accurate" is one of them.


Bighorserider

32 Cal
Joined
Apr 20, 2013
Messages
29
Reaction score
6
Everyone else seems to have better luck with CVA than I did. My first 2 kits were a derringer and Kentucky pistol. The derringer leaked gas between the breechplug and barrel but shot ok. The pistol had a terrible lock that never worked right. I traded both of them and never missed either.
