Uberti 1860 strange screw location

Help Support Muzzle Loading Forum:

jdn262

32 Cal
Joined
Jul 10, 2019
Messages
23
Reaction score
20
Location
Sierra-Nevada Mountain Range
Hi guys,

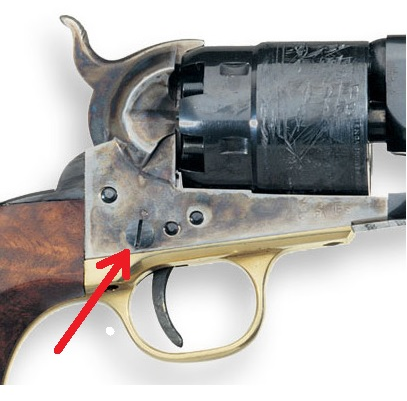

I received my new Uberti 1860 Army today and commenced disassembling it to degreasing the factory lubricant, re-lubing and assemble. I noticed two screws on either side of the frame that I cannot tell if they serve any function on the revolver other than to plug two holes. Both are fillister head screws. Being right handed, the screw on the right side of the frame brush uncomfortably against my trigger finger when gripping the revolver. Has anyone encountered this same problem with the Uberti 1860? Is there a fix or do I have to just live with the screws as they are on the frame? Please see the photo below. Comments would be appreciated.



Tom A Hawk

45 Cal.
MLF Vendor
MLF Supporter
Joined
Jul 6, 2006
Messages
837
Reaction score
562
Location
Finger Lakes Region - NYS
That would appear to be a "Cut For Shoulder Stock" configuration. There will also be a notch cut in the bottom of the grip frame meant to engage the tension hook. The raised screw heads mate with a recess in the shoulder stock frame.


Grenadier1758

58 Cal.
Joined
Oct 9, 2004
Messages
4,589
Reaction score
1,283
Location
St. Louis, MO
Its a locating screw for the mounting a shoulder stock. There's a lot of threads on the forum discussing the shoulder stocks.

@Tom A Hawk , you were quick with the answer and a picture to boot.


sourdough

40 Cal
Joined
Feb 3, 2020
Messages
116
Reaction score
97
Location
SW WA State
You have an 1860 Army .44 that is a 4-screw frame with CFS (cut for shoulder stock on the recoil shields) revolver. Yes, it is uncomfortable on the trigger finger. You can just remove those "4th screws" and even replace them with short set screws to fill the holes.

Or, you can obtain a shoulder stock and shoot it as it was designed. Mine:



Regards,

Jim

Joined
Jul 26, 2014
Messages
2,024
Reaction score
539
The purpose of the shoulder stock is to provide greater stability and in theory this can increase the ability to hit a target at longer ranger.


Dashing Leper

32 Cal
Joined
Mar 2, 2020
Messages
29
Reaction score
13
Location
California
Have one myself, and I kind of regret not ordering the 1860 'Civilian' Model instead. Same gun, except without those screws and has a brass backstrap.


Tom A Hawk

45 Cal.
MLF Vendor
MLF Supporter
Joined
Jul 6, 2006
Messages
837
Reaction score
562
Location
Finger Lakes Region - NYS
Thankfully, I don't mind these screw heads on my gun. But if I did, I think I would replace them with an appropriate slotted set screw that would install flush with the frame. Simply removing the screws leaves the inner components exposed to dirt and crud.


jdn262

32 Cal
Joined
Jul 10, 2019
Messages
23
Reaction score
20
Location
Sierra-Nevada Mountain Range
Thankfully, I don't mind these screw heads on my gun. But if I did, I think I would replace them with an appropriate slotted set screw that would install flush with the frame. Simply removing the screws leaves the inner components exposed to dirt and crud.
Tom,
The set screw replacement sounds like an excellent idea. By chance, would you know the gunsmith screw thread size that Uberti uses for the two screws mentioned in my thread? Most likely it's metric from Uberti being in Italy, but possibly could be SAE gunsmithing thread size.


SDSmlf

40 Cal.
Joined
Nov 4, 2006
Messages
1,566
Reaction score
697
Location
Western North Carolina
You have the screws, measure them. Or take them to a hardware store and use their thread sizing board. I know places like Lowe’s has them.


sourdough

40 Cal
Joined
Feb 3, 2020
Messages
116
Reaction score
97
Location
SW WA State
Just make sure those set screws are short so as not to interfere with the internal parts (hand, bolt, trigger, hammer).

Jim


Woodnbow

45 Cal.
Joined
Nov 16, 2009
Messages
719
Reaction score
387
I use the screw holes as ports for applying white lithium grease to the action parts. Replace them and fouling really struggles to make it into the works.


F.G. Ford

62 Cal.
MLF Supporter
Joined
Apr 3, 2005
Messages
2,809
Reaction score
109
Before buying a shoulder stock, try shooting your 1860 one foot from your nose and enjoy the blast of grease, powder, & caps.
Impressive to say the least! I do have difficulty seeing the better shooting capability knowing that feature is about to happen.
I know this from experience, and would rather pass.
Fred


Capnball

40 Cal
Joined
Sep 27, 2019
Messages
260
Reaction score
183
Location
Maryland
You have an 1860 Army .44 that is a 4-screw frame with CFS (cut for shoulder stock on the recoil shields) revolver. Yes, it is uncomfortable on the trigger finger. You can just remove those "4th screws" and even replace them with short set screws to fill the holes.

Or, you can obtain a shoulder stock and shoot it as it was designed. Mine:



Regards,

Jim
Really nicely done boxed set. Love that stuff.
