Need a new lock

Help Support Muzzle Loading Forum:

Newtire

32 Cal.
Joined
Oct 25, 2009
Messages
227
Reaction score
65
Location
Southwestern Idaho to the left of Boise

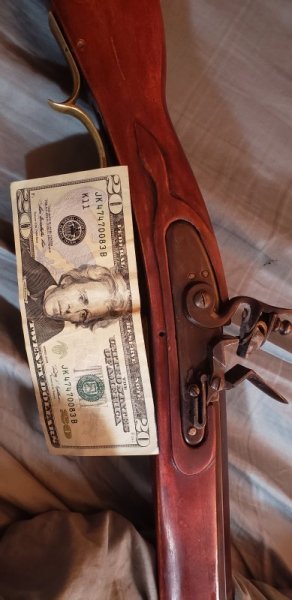

I bought a nice slim .40 cal flint gun awhile back and finally got around to shooting it. The tumbler and lockplate hole are both worn to where the hammer (cock sounded too funny-sorry)is wobbly and I can see light between the parts. I can find no markings on the gun and it wasn't even finished when I got it. Anyone know how to go about getting a lock that fits and works?20200328_164357.jpg

Joined
Mar 22, 2020
Messages
3
Reaction score
1
The lock looks like the ones Dixie Gun works sold back in the 70's and early 80's. If you have a Track of the Wolf catalog they have their parts listed life size and you could match up a lock plate closer to yours. You can fix the one you have with a bushing in the lock plate and the tumbler may need to be changed also if it's not round. If you can't do it yourself it may cost more to have the old one fixed than to but a new one.


Kansas Jake

54 Cal.
MLF Supporter
Joined
Mar 23, 2015
Messages
3,079
Reaction score
717
I see a number of recommendations from time to time on getting a Track catalog. I believe they are out of them at this time and I haven't heard that they have received any in some time. I recently ordered some stuff and requested a catalog and was advise they were out. I used their online site to request being advised when one would be available and have not received any notice. I think they haven't had any for quite a while.


hanshi

Cannon
Joined
May 7, 2009
Messages
9,922
Reaction score
1,096
You can draw the outline of the plate and send it to TOW. They'll let you know if they have anything that will replace it.


russellshaffer

36 Cal.
Joined
Jan 15, 2017
Messages
389
Reaction score
167
Location
Klamath Falls, Oregon
Depending on the hardness of the tumbler and the lockplate, maybe only one or the other is worn. Could be that changing just the tumbler would fix the problem. Another thought - if the gun wasn't finished how did the lock get worn?


dave_person

54 Cal.
Joined
Nov 26, 2005
Messages
2,953
Reaction score
1,411
Hi Newtire,
Since you are in Idaho look up Muzzleloader Builders Supply in Aberdeen. They have a website and online catalog (www.muzzleloaderbuilderssupply.com) . Ryan is very helpful and should be able to steer you in the right direction.

dave


Tom Compton

54 Cal.
Joined
Oct 21, 2008
Messages
1,755
Reaction score
78
Contact L&R Lock Company. Explain your situation and ask if they would let you send yours to them and recommend a replacement. They make replacements for several (I have several in service). Good locks and great folks to deal with. They’ll even swap a goose neck for a double throat cock or vice versa. There may be some minor wood removal required or if you feel your skills and tools on hand aren’t up to it, you could ask if they’ll trim to fit. Even locate screw holes. I’ve not asked about such custom service but no reason not to ask.

Also I suggest you get spare springs too.


Grenadier1758

58 Cal.
Joined
Oct 9, 2004
Messages
5,153
Reaction score
1,874
Location
St. Louis, MO
There is a way to get around the lack of the Track of the Wolf catalog. You can go to the Track of the Wolf website and search for the Flintlocks, Rifle. TotW There's 50 locks to look at. If you see a lock that looks promising, print that page of the catalog. You will print a nearly actual sized image of the lock to compare with your lock. I've use that to print an image of my locks to use as a template for inletting the lock in my stock.


TreeMan

40 Cal
MLF Supporter
Joined
Mar 5, 2019
Messages
132
Reaction score
84
Location
Bastian Virginia
You can contact Paul Ackerman here. Link>Home
He fixed a lock for me a couple weeks ago and he was cheap. He has lots of parts or can fabricate what you need.

Last edited:
