Hi guys,

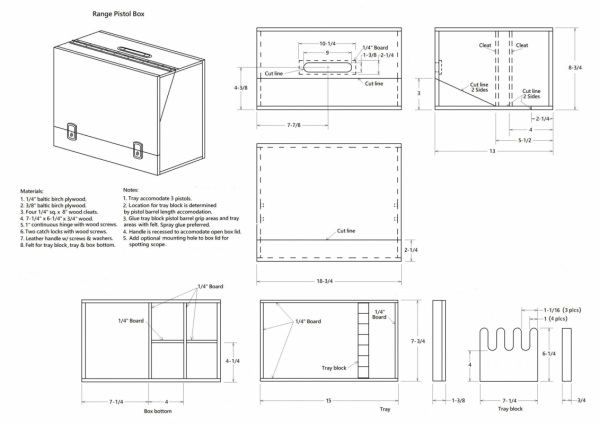

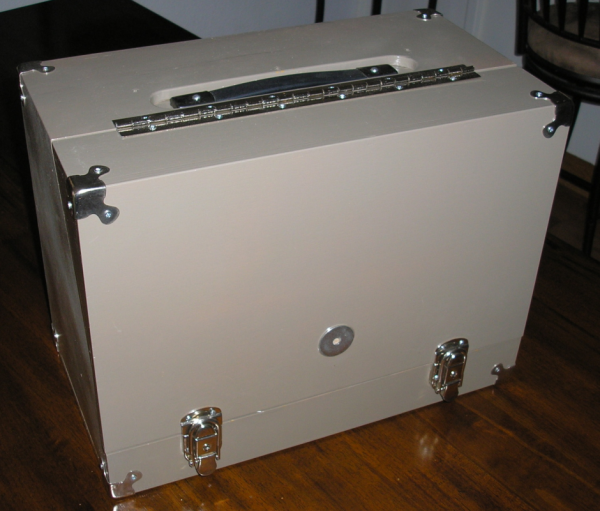

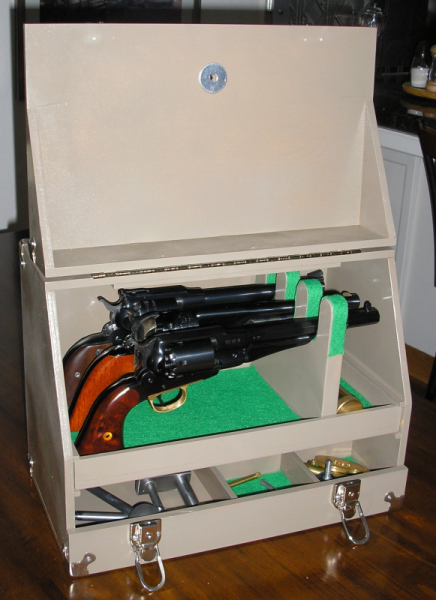

Because of my state’s mandate to stay at home due to the COVID-19 virus these days, I have a lot of extra time on my hands to do home projects. Like most every BP pistol shooters, I have always lugged around one of the plastic tool boxes that you buy at the hardware store to keep all my BP gear in with my revolvers. At the shooting range, I have always admired the bullseye range pistol boxes that other shooters use for bullseye competition and wondered if the same box could be adapted for my BP revolvers. Checking out a couple of websites for range pistol boxes I found that they can be quite expensive around $200.00 to $500.00 depending upon the wood, design and style. Used ones on ebay were either beat up or too over priced. Remembering that I had an old range pistol box construction sheet that was available at a gun club many years ago, I determined that I had enough wood and hardware on hand to build my own range pistol box for my BP revolvers. Below are photos and the scanned instructions of my finished box that accommodates my ROA and both Uberti 1858 and 1860 revolvers, cylinder loading press and accessories. Note that I normally put each revolver in a pistol sock but left them off for the photos. The spotting scope and BP powder I carry separately. The box makes for a very convenient compact case for carry and storage of my three BP revolvers. The plans are also attached.



Attachments

Last edited:

Boston Bill

40 Cal
MLF Supporter
Joined
Nov 21, 2019
Messages
122
Reaction score
20
Location
Massachusetts
Very Nice! Is that a Powder, Inc cylinder loading tool? I just got 1 and have not had a chance to use it yet. Got it for the 31 cal pocket model. Could not see using the stubby cylinder loading lever!


jdn262

32 Cal
Joined
Jul 10, 2019
Messages
23
Reaction score
20
Location
Sierra-Nevada Mountain Range
Hi Boston Bill,
Yes, that is a Powder, Inc. cylinder loading tool. I did modify it by adding a 3/8-16 x 3/8-16 coupling with a 6 inch length of 3/8-16 threaded rod with heat shrink tubing on the rod. I found that the shorter length of the Powder, Inc. rod was harder to press a .457 ball into my ROA cylinder. The extra length of the rod allows for more of a moment arm to the loading tool for an easier and controlled pressing of the ball into a cylinder. I simply unscrew the rod extension for storage in my range pistol box. The Powder, Inc. tool is the best accessory that I bought so that I don't make the mistake of bending the loading lever on all my BP revolvers. See my loading press photo below.



hanshi

Cannon
Joined
May 7, 2009
Messages
9,606
Reaction score
707
Wow! That's a masterfully built box; excellent!


TNGhost

40 Cal.
MLF Supporter
Joined
Jun 4, 2014
Messages
985
Reaction score
375

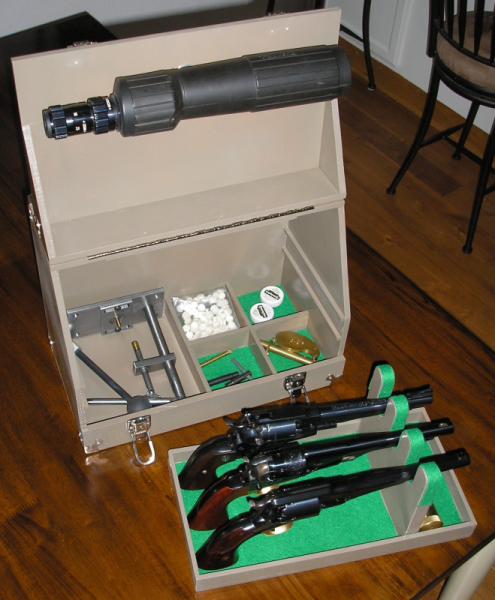

Nice job. I love the clever use of the lid to mount the spotting scope.


nhmoose

58 Cal.
MLF Supporter
Joined
Sep 30, 2010
Messages
2,767
Reaction score
241
Location
north of Golden Pond, NH
Nice job! My 1970's Packmyer box for modern competition looked just like it except it was covered in black Naugahyde.


JoJoLesh

40 Cal
Joined
May 7, 2020
Messages
119
Reaction score
48
Thank you for the included drawings. I don't have any pistols that ican mention here, but I would like to make a nice range box for my BP rifle equipment.


Capnball

40 Cal
Joined
Sep 27, 2019
Messages
259
Reaction score
183
Location
Maryland
Hi guys,
Because of my state’s mandate to stay at home due to the COVID-19 virus these days, I have a lot of extra time on my hands to do home projects. Like most every BP pistol shooters, I have always lugged around one of the plastic tool boxes that you buy at the hardware store to keep all my BP gear in with my revolvers. At the shooting range, I have always admired the bullseye range pistol boxes that other shooters use for bullseye competition and wondered if the same box could be adapted for my BP revolvers. Checking out a couple of websites for range pistol boxes I found that they can be quite expensive around $200.00 to $500.00 depending upon the wood, design and style. Used ones on ebay were either beat up or too over priced. Remembering that I had an old range pistol box construction sheet that was available at a gun club many years ago, I determined that I had enough wood and hardware on hand to build my own range pistol box for my BP revolvers. Below are photos and the scanned instructions of my finished box that accommodates my ROA and both Uberti 1858 and 1860 revolvers, cylinder loading press and accessories. Note that I normally put each revolver in a pistol sock but left them off for the photos. The spotting scope and BP powder I carry separately. The box makes for a very convenient compact case for carry and storage of my three BP revolvers. The plans are also attached.

View attachment 31490
View attachment 31492
View attachment 31494
View attachment 31497
Nicely done. I have seen this type of box before at ranges, they always look very professional. I'm actually in the middle of building a range box for my black powder guns. It's all white oak.
I gave the individual panels cut and assembled the next step is to dovetail the corners.KIMG0703.JPG31602.jpeg
The lid is being dry fit. The sides are all marked.


Boston Bill

40 Cal
MLF Supporter
Joined
Nov 21, 2019
Messages
122
Reaction score
20
Location
Massachusetts
Looks nice and very practical, except it looks heavy to lug around very far.
I find my wooden shooters box for my smokeless guns, by the time you add the ammo and a gun or 2 it is really heavy. We need to look into the 3 gun cowboy set ups with wheels. I can't find what I was looking for but this will give you all some ideas.
